Features

- Highest efficiency model with all smooth tubes
- Corrugated furnaces on ASME Section I high pressure boilers
- Large furnace volume for complete combustion
- Lower emissions and high efficiency
- Exceptional efficiencies and economical operation
- Extended warranty on major PV parts and front/rear smoke box doors

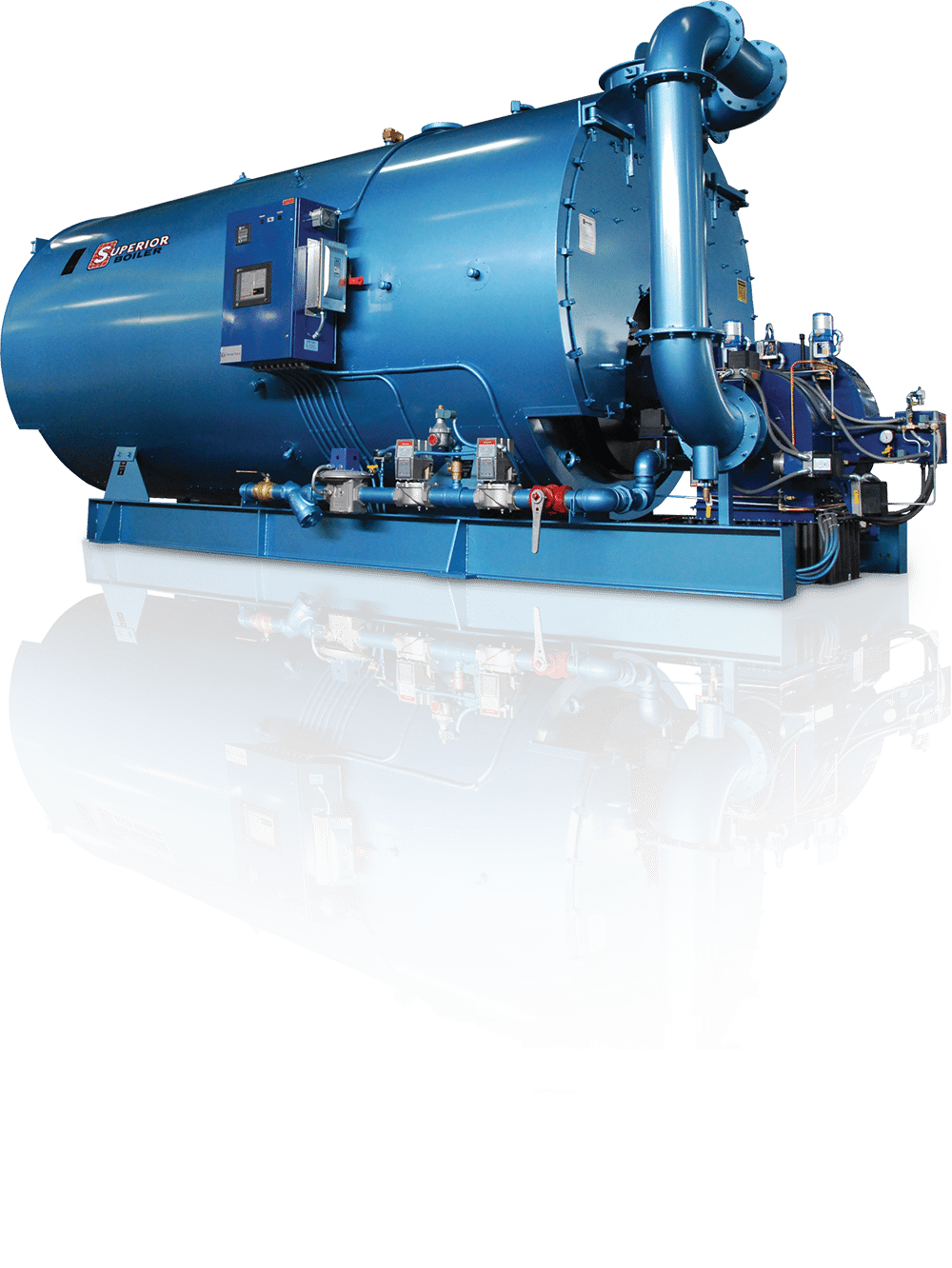

- Available with NOx reduction technology to sub 9 ppm, the Mohican is an excellent option for your particular efficiency needs.

Construction

- Handholes for waterside access
- Factory installed gas train available with FM, GE-GAP, NFPA-85, UL and other approvals
- Structural steel skid available with optional removable skids, jacking pads and seismic design
- Wetback turnaround eliminates the need for expensive refractory and minimizes maintenance.
- Four pass design allows for maximum efficiency.
- Hinged and davited front and rear doors for complete tube access.

Quality

To make the highest quality scotch marine boiler on the market, we began with quality-in-design. The tube sheet, furnace, tubes and other critical components are designed to exceed the ASME code to provide longevity, reliability, efficiency, and quality. These components include:

- Tubesheets exceeding the ASME code thickness by 25% in low pressure units

- Tubesheets exceed ASME code thickness by 33% in high pressure units

- Tubesheets come with standard 3/4″ ligament spacing.

- Tubes 10% thicker than ASME code requirements

-  Furnace is 21% greater in size than other boilers, in both length and diameter

- Furnace design contains flame within furnace and protect rear tubesheet against overheating.

- High pressure steam boilers include a corrugated furnace

- Corrugated furnace combats the negative effects of expansion and contraction.

Whether we are cutting steel, welding tubesheets to pressure vessels, insulating pressure vessels with two inch 8-lb density mineral fiber, painting galvanized 22 gauge steel jackets with 500°F enamel or piping a gas train, we tailor our products to exceed ASME standards.

Safety

Packaged boilers are trimmed with necessary safeties and code piping and signed off on by code inspectors. Factory mounted and wired, proven and reliable packaged burners are available from your choice of burner manufacturer. All Superior packaged firetube boilers are low fire tested and can be full factory firetested to check electrical components for proper operation, ensure smooth ignition, and allow quicker field startups.



---

DETAILS

Capacity: 50 - 1,500 HP

Fuel Capabilities: #2 Oil, Bio-Diesel, Digester Gas, Heavy-Oil, Hydrogen, Natural Gas, Propane, Syngas

Pass: 4-pass

Tube Type: Smooth Tubes

Steam Design Pressure: 15 - 300 psig

Hot Water Design Pressure: 30 - 160 psig

---
